Basic Box DL 540
DL 540 Series: Versatile and Durable Aluminium Boxes for All Your Needs
Introducing the DL 540 range from ALU-LOGIC – a line of aluminum boxes crafted for both industrial strength and universal versatility. Designed to excel in a multitude of scenarios such as manufacturing, packaging, storage, transportation, organization, and protection, these boxes are the epitome of 'Basic Value' with enduring performance under most conditions. Environmentally Conscious and Sustainable: In line with ALU-LOGIC's commitment to sustainability, the DL 540 aluminium cases are completely recyclable. Choosing these boxes means contributing to sustainable practices in the industry while benefiting from a product that's both durable and eco-friendly.
Robust and Safe Transportation Solutions: Each box in the DL 540 range is a robust transportation solution, prioritizing safety without compromising on cost-effectiveness. Built to withstand the rigors of industrial use, these aluminum boxes are equipped with all the necessary features to efficiently fulfill a variety of tasks, making them indispensable in any professional setting.
Customizable for Every Unique Requirement: The DL 540 series offers a wide selection of 11 models, with capacities ranging from 29 to 455 liters, ensuring that there’s a perfect fit for every requirement. If our standard sizes don’t meet your specific needs, we’re more than ready to customize. ALU-LOGIC can tailor-make an aluminium box to your exact dimensions, providing a solution that's as unique as your requirements. Choose the DL 540 range for an aluminium box that combines safety, economy, and versatility. Whether for industrial use or personal needs, these aluboxes are designed to deliver unmatched value and performance.
Specification:
- Quality, endurable aluminium box. 1.0 mm aluminium sheet material on all sizes, strength and durability by design.
- 11 standard available sizes, stackable within range, offering options for logistical packing, storage and transport.
- Aluminum profile safety spring handles with plastic molded grip.
- Stacking corners made from nylon/polyester and designed for temperatures between -40°C and +180°C are intended for even safer and economical storage.
- Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
- Corrosion resistant hinges with hinge damage prevention.
- All-round beads and corner beads for additional dimensional stability depending on size.
- High-strength welded joints. Gap-free load-bearing dot welded overlap joint of the body sheet.
- EPDM sealing gasket in the upper rim for ingression protection against dust and water.
- All riveted joints with sealed blind rivets.
- By types 153 and 425 liters the bottom and the lid have been additionally reinforced with aluminium reinforcement struts.
- 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
- 95-100° opening angle of the lid.
- Removable protection foil on the lid to protect the box against scratches.
- IP 54 standard design
Features: superior in safety and economical in use
Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

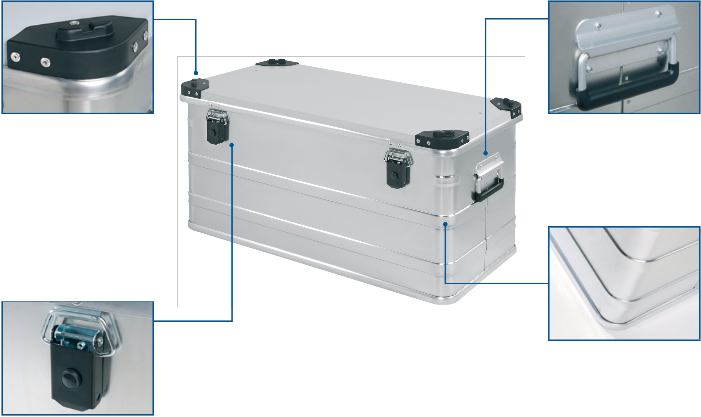

Stacking corners
Stacking corners made from nylon/polyester and designed for temperatures between -40°C and +180°C are intended for even safer and economical storage in a limited space.
Handles
Aluminium profile safety spring handles with return spring and plastic molded grip.
Toggle lock made from aluminum / stainless steel
40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
Beads
All-round beads and corner beads for additional dimensional stability depending on size.

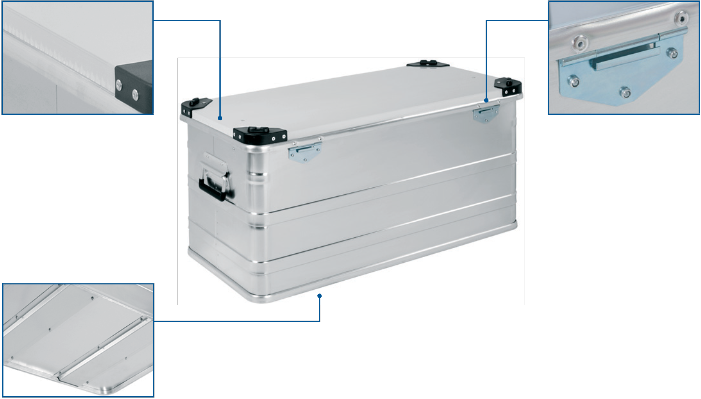

Protection foil
Removable protection foil on the lid to protect the box against scratches.
Hinges
Corrosion resistant hinges with hinge damage prevention.
Aluminium profile reinforcement struts
Additional bracing made of stable aluminium profiles. By types 163 and 415 liters the bottom and the lid have been additionally reinforced with aluminium reinforcement struts.

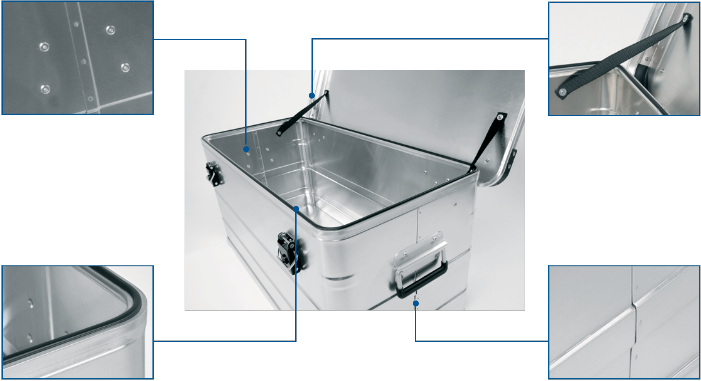

Rivets
All riveted joints are finished with sealed blind rivets.
Lid straps
2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
Sealing gasket
EPDM sealing gasket in the upper rim for ingression protection against dust and water.
High-strength welded joints
Gap-free load-bearing dot welded overlap joint of the body sheet.
AccessoriesTO COMPLETE YOUR BOX INTO A PACKAGING SOLUTIONWe offer not only empty boxes but also a range of useful accessories. |
|||
We offer adjustable aluminum divider panel sets for the boxes, consisting of aluminum partition walls and struts. They quickly and simply help adjusting the box's interior to whatever you are transporting or storing. |
Foam inserts and foam linings made of PE, PU, EPE and ESD foams. Quick and perfect solution for individual units or valuable batches stored in the box. |
The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box. |
Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats. |
Optional extrasFOR YOUR SPECIFIC DEMANDExtras are provided for fulfilling the requirements of planned operations. |
|||
It might be necessary that the box is painted in a color complying with the application purpose. Powder coating is available in any RAL color or in special colors like RAL 6031 F9 NATO green. |
Individual logo embossing and markings upon customer request. |
The aluminium boxes can be equipped with various additional features, like wheels, legs or the two combined, as well as label holders, pressure relief valves, etc. |
Sizes Basic Box DL 540
ADDITIONAL SIZES ARE POSSIBLE ON REQUEST
You can scroll the table to the left to see all columns.
Item No. |
Int. dimensions mm (LxWxH) |
Ext. dimensions mm (LxWxH) |
Volume (L) |
Weight (KG) |
---|---|---|---|---|
10210035 |
400x300x245 |
432x335x277 |
29 |
3,3 |
10210036 |
550x350x245 |
582x385x275 |
47 |
4,6 |
10210037 |
550x350x380 |
582x385x410 |
73 |
5,3 |
10210038 |
750x350x350 |
782x385x380 |
92 |
6,2 |
10210039 |
870x460x350 |
902x495x380 |
140 |
8,7 |
10210040 |
750x550x380 |
782x585x410 |
157 |
9,0 |
10210041 |
1150x350x380 |
1182x385x410 |
153 |
10,5 |
10210042 |
750x550x590 |
782x585x620 |
243 |
10,7 |
10210165 |
1500x550x485 |
1532x585x515 |
400 |
20,0 |
10210043 |
1160x755x485 |
1192x790x515 |
425 |
17,5 |
10210166 |
2100x450x485 |
2132x485x515 |
455 |
25,0 |
