Products

Aluminium cases, boxes, baskets, trolleys

Moto Box CM 445

PACK AND RIDE ON- OR OFF-ROAD
Moto Box CM 445 - Pannier boxes and topcases Moto Box CM 445 - Pannier boxes and topcases Moto Box CM 445 - Pannier boxes and topcasesMoto Box CM 445 - Pannier boxes and topcasesMoto Box CM 445 - Pannier boxes and topcasesMoto Box CM 445 - Pannier boxes and topcasesMoto Box CM 445 - Pannier boxes and topcases

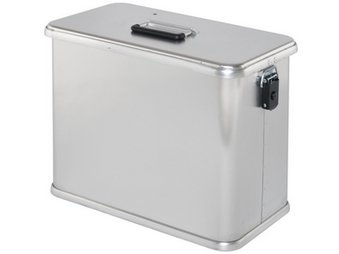

Lightweight, rigid, water- and weatherproof Pannier Boxes and Topcases made of 1,2 mm aluminium sheet, recyclable aluminium cases designed and manufactured for motorcycles. The Pannier Boxes type 32, 36 and 41 liters are symmetric and intended to attach to both left and right side of the motorcycle. The Topcase type 35 liters is to be mounted on the rear of the motorcycle. Robust and solid boxes, providing storage, protection and safety for all the supplies of a motorcyclist on road journeys or off-road.

The CM 445 range comprises 3 Pannier Boxes, capacities ranging 32, 36 and 41 liters, as well as 1 Topcase with 35 liters capacity.

IMPORTANT NOTE!
The motorcycle pannier boxes and topcases are produced as mere boxes. They do not include attachments for the boxes to be fitted on a motorcycle. All subsequent installation and settings are exclusively at the user?s task and risk. We are not liable for any damage caused during the installation of a motorcycle box to a motorcycle by the user.


  • Specification
  • Features
  • Accessories
  • Sizes
  • Downloads

Specification:

  • Quality, endurable aluminium box. 1.2 mm aluminium sheet material on all sizes, light and rigid by design.
  • Aluminium profile safety spring handles with return spring and plastic molded grip on the lid, fitted with sealed blind rivets.
  • Flat lid with removable protection foil protects the lid of the box against scratches.
  • Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for optional cylinder lock, fitted with sealed blind rivets.
  • Corrosion resistant piano hinge, fitted with sealed blind rivets.
  • Waterproof. All internal joints sealed with silicone coating, provides a water- and weatherproof box.
  • Gap-free, load-bearing, dot welded overlap joint of the body sheet.
  • EPDM sealing gasket in the upper rim for ingression protection against dust and water.
  • All riveted joints with sealed blind rivets.
  • Lid strap, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
  • The body sheet of the Topcase is reinforced with an all-around reinforcement rib and additional corner ribs.
  • 100-110° opening angle of the lid.

Features: lightweight, rigid, waterproof

Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

Handles

Aluminium profile safety spring handles with return spring and plastic molded grip.

Flat lid with removable protection foil

protects the lid of the box against scratches.

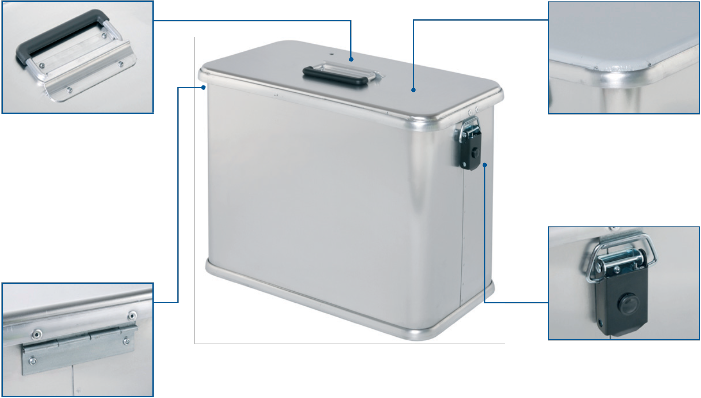

Pannier box - CM 445 Moto Box

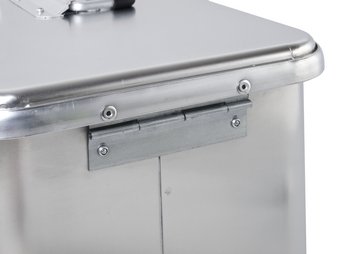

Piano hinge

Corrosion resistant piano hinge, fitted with sealed blind rivets.

Toggle lock made from aluminium / stainless steel

40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.


Waterproof

All internal joints sealed with silicone coating, provides a water- and weatherproof box.

Lid strap

Lid strap, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.

Pannier box - CM 445 Moto Box open

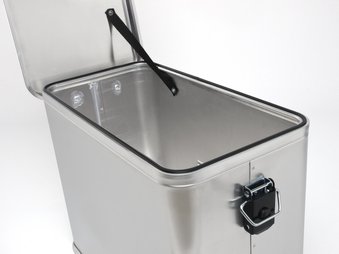

Sealing gasket

EPDM sealing gasket in the upper rim for ingression protection against dust and water.

High-strength welded joints

Gap-free load-bearing dot welded overlap joint of the body sheet.



Accessories

TO ENSURE THE SAFETY OF THE CONTENTS
We offer not only empty boxes but also a range of useful accessories.

Aluminium case - Cylinder lock fitted in toggle lock

Cylinder locks - lock sets

The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box.



Sizes Moto Box CM 445

You can scroll the table to the left to see all columns.

Item number

Int. dimensions mm (LxWxH)

Ext. dimensions mm (LxWxH)

Volume (L)

Weight  (KG)

BOX TYPE

10210129

 455x205x350

 490x240x367

32

3,0

Pannier Box L/R

10210130

 455x235x350

 490x270x367

36

3,2

Pannier Box L/R

10210131

 455x265x350

 490x300x367

41

3,4

Pannier Box L/R

10210132

 400x297x293

 430x335x326

35

3,2

Topcase



» Download the Moto Box CM 445 Product Leaflet
