Products

Aluminium cases, boxes, baskets, trolleys

Pharma Box DP 545

DEVELOPED FOR THE MEDICAL SECTOR

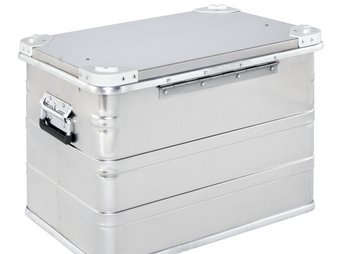

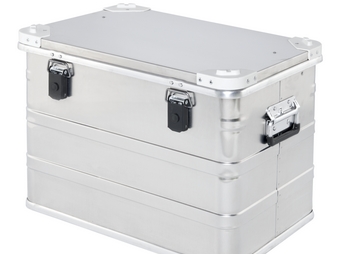

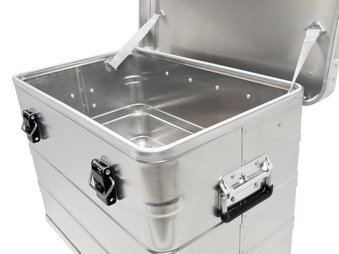

Pharma Box DP 545 - Aluminium box Pharma Box DP 545 - Aluminium box Pharma Box DP 545 - Aluminium box

Aluminium boxes specially designed for the medical sector, for intra production logistics, handling and storage of drugs. Ideal for storing and transporting extremely sensitive contents or substances. The lid is made of extra strong, 1.5 mm AlMg3 alloy aluminium sheet, making lifting and manipulation with vacuum manipulators possible. Aluminium boxes for the secondary packaging of primary packed drugs or pharmaceutical raw materials. Recyclable aluminium cases contribute to sustainable development in the pharma industry.

This range offers an aluminum box for the medical industry, for pharmaceutical producers, for medicaments' storage & distribution or for hospitals as a customized alubox.

The DP 545 range comprises 5 models. Capacities range from 47 to 657 liters. If one of these does not fit your requirement, we can make to your size.


  • Specification
  • Features
  • Accessories
  • Sizes
  • Downloads

Specification:

  • High quality heavy duty aluminium alloy box. 1.0 mm AlMg3 body sheet material on all sizes, strength and durability by design.
  • The lid is made of extra strong, 1.5 mm AlMg3 alloy aluminium sheet, making lifting and manipulation with vacuum manipulators possible.
  • Heavy duty stainless steel/aluminium spring drop handles with return spring and plastic molded grip.
  • Optional cylinder locks or lock sets to close the box for the safety of sensible contents, like drugs, etc.
  • Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
  • Aluminium profile reinforcement struts on base plate from size 425 liters.
  • All riveted joints are finished with solid rivets. By stacking corners with sealed blind rivets.
  • 2 lid straps, in white color, 20mm wide, with extra strong, special fixing to the lid and body.
  • 95-100° opening angle of the lid, to prevent accidental fall.
  • IP 54 standard design.
  • White stacking corners made from nylon/polyester and designed for temperatures between -40°C and +180°C are intended for even safer and economical storage in a limited space.
  • All-round beads and corner beads for additional dimensional stability depending on size
  • Stainless steel piano hinges lengthwise of the box. Riveted in the body sheet and solid lid profile.
  • High-strength welded joints. Gap-free, load-bearing dot welded overlap joint of the body sheet.
  • White EPDM sealing gasket in the upper rim for ingression protection against dust and water.

Features: developed for the specific requirements of the medical industry

Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

White stacking corners

White stacking corners made from nylon/polyester and designed for temperatures between -40°C and +180°C are intended for even safer and economical storage in a limited space.

Handles

Heavy duty stainless steel/aluminium spring drop handles with return spring and plastic molded grip.

Alubox - Pharma Box DP 545 front view

Toggle lock made from aluminum / stainless steel

40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.

Beads

All-round beads and corner beads for additional dimensional stability depending on size.


All solid rivets

All riveted joints are finished with solid rivets. By stacking corners with sealed blind rivets.

Stainless steel piano hinges lengthwise

Riveted in the body sheet and solid lid profile.

Alubox - Pharma Box DP 545 raer view

High-strength welded joints

Gap-free load-bearing dot welded overlap joint of the body sheet.

Aluminium profile reinforcement struts

Additional bracing made of stable aluminium profiles on base plate from size 425 liters.


White lid straps

2 lid straps, in white color, 20mm wide, with extra strong, special fixing to the lid and body.

Lid from 1,5mm alu sheet

Lid made of 1,5mm strong alu sheet making handling and manipulation with vacuum manipulators possible.

Alubox - Pharma Box DP 545 front view open

Cylinder locks - option

Optional cylinder locks or lock sets to close the box for the safety of sensible contents, like drugs, etc.

White sealing gasket

White EPDM sealing gasket in the upper rim for ingression protection against dust and water.



Accessories

TO COMPLETE YOUR BOX INTO A PACKAGING SOLUTION
We offer not only empty boxes but also a range of useful accessories.

Aluminium case - Cylinder lock fitted in toggle lock

Cylinder locks - lock sets

The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box.

Document holder A/4 in aluminium box lid

Document holder A/4 / A/5

Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats.

Sizes Pharma Box DP 545

ADDITIONAL SIZES ARE POSSIBLE ON REQUEST

You can scroll the table to the left to see all columns.

Item No.

Int. dimensions  mm (LxWxH)

Ext. dimensions mm (LxWxH)

Volume (L)

Weight (KG)

10210108

550x350x245

582x385x277

47

4,8

10210109

550x350x380

582x385x410

92

5,4

10210044

750x550x380

782x585x410

157

8,7

10210045

1160x755x485

1192x790x515

425

17,0

10210167

1160x755x750

1192x790x782

657

29,8



» Download the Pharma Box DP 545 Product Leaflet
