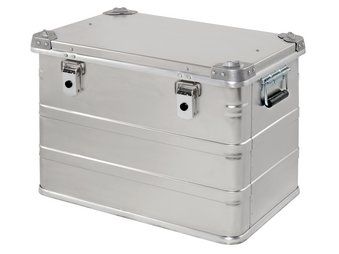

Defence Box NA 740
REAL VALUE THAT PERFORMS ENDURABLY UNDER EXTREME CONDITIONS
At every latitude to the polar circles and beyond, whether inland or off shore, these boxes perform endurably as they are designed and manufactured based on the practical experiences of military applications under extreme conditions. With their additional reinforcements, heavy duty components you get a snow-, desert- and seaworthy packaging, an aluminium case devoted to mobile operations. Recyclable aluminum cases contribute to environmental awareness in the Defence industry.
This range offers a high performance aluminium box for the defence industry, as NATO, peace-keeping forces and emergency aid organisations.
The NA 740 range comprises 19 models. Capacities range from 27 to 673 liters. If one of these does not fit your requirement, we can make to your size.
Specification:
- High quality heavy duty aluminum alloy box. 1.0 mm AlMg3 body sheet material on all sizes, strength and durability by design.
- Heavy duty stainless steel spring drop handles with return spring and plastic molded grip, fixed with 6 solid rivets.
- 1,5mm backup plate for the handles, riveted in the inside of the box.
- Toggle locks made from aluminum/stainless steel. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle Ø 6 mm. Lock fixed with 4 solid rivets to the body.
- Every box reinforced with aluminum profile reinforcement struts.
- All riveted joints with solid rivets.
- 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
- 115-120° opening angle of the lid, to prevent accidental fall.
- PU resin sealing of all joints and rivet heads inside to provide water-tightness up to the lid.
- IP 54 standard design, also available with all-round foamed lid seal for improved IP-protection and security.
- Stacking corners made of cast aluminum with injection molding.
- All-round beads and corner beads for additional dimensional stability depending on size.
- Stainless steel piano hinges lengthwise of the box. Riveted in the body sheet and solid lid profile.
- High-strength welded joints. Gap-free, load-bearing dot welded overlap joint of the body sheet.
- Solid silicone sealing gasket 8x7mm in the upper rim with specially formed legs to avoid extraction. High temperature tolerance in the event of exposure to both low and high temperatures.
Features: value that performs endurably
Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.
Stacking corners
Made of cast aluminum with injection molding.
Handles
Heavy duty stainless steel spring drop handles with return spring and plastic molded grip.
Toggle lock made from aluminum / stainless steel
40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm. Lock fixed with 4 solid rivets to the body. Catch-hook fixed with 3 solid rivets to the lid.
Beads
All-round beads and corner beads for additional dimensional stability depending on size.
All solid rivets
All riveted joints are finished with solid rivets.

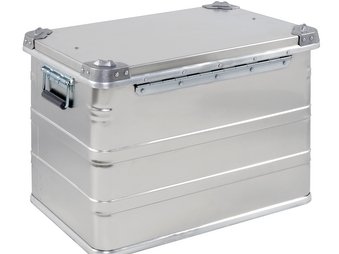

Stainless steel piano hinges lengthwise
Riveted in the body sheet and solid lid profile.
High-strength welded joints
Gap-free load-bearing dot welded overlap joint of the body sheet.
Aluminum profile reinforcement struts
Additional bracing made of stable aluminum profiles on base plate.
Backup plate
1,5mm backup plates for fixing the handles in the inside, for additional reinforcement and load-bearing of the handles.

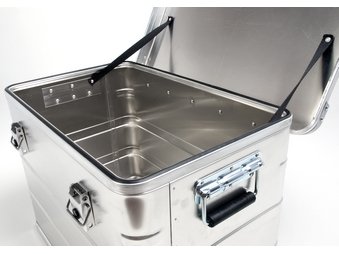

Lid straps
2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
PU-Sealing
PU resin sealing of all joints and rivet heads in the inside to provide water-tightness.
Silicone sealing gasket
Solid silicone sealing gasket 8x7mm in the upper rim with specially formed legs to avoid extraction. High temperature tolerance in the event of exposure to both low and high temperatures.
AccessoriesTO COMPLETE YOUR BOX INTO A PACKAGING SOLUTIONWe offer not only empty boxes but also a range of useful accessories. |
|||
|
We offer adjustable aluminum divider panel sets for the boxes, consisting of aluminum partition walls and struts. They quickly and simply help adjusting the box's interior to whatever you are transporting or storing. |
Foam inserts and foam linings made of PE, PU, EPE and ESD foams. Quick and perfect solution for individual units or valuable batches stored in the box. |
The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box. |
Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats. |
Optional extrasFOR YOUR SPECIFIC DEMANDExtras are provided for fulfilling the requirements of planned operations. |
|||
|
It might be necessary that the box is painted in a color complying with the application purpose. Powder coating is available in any RAL color or in special colors like RAL 6031 F9 NATO green. |
All-round foamed lid seal - Option All-round foamed lid seal, improving the IP protection of the aluminium box and providing extra security. Available as option. |
Individual logo embossing and markings upon customer request. |
The aluminium boxes can be equipped with various additional features, like wheels, legs or the two combined, as well as label holders, pressure relief valves, etc. |
Sizes Defence Box NA 740
ADDITIONAL SIZES ARE POSSIBLE ON REQUEST
You can scroll the table to the left to see all columns.
|
Item No. |
Int. dimensions mm (LxWxH) |
Ext. dimensions mm (LxWxH) |
Volume (L) |
Weight (KG) |
|---|---|---|---|---|
|
10210006 |
350x250x310 |
380x280x330 |
27 |
3,9 |
|
10210007 |
550x350x150 |
580x380x170 |
29 |
5,0 |
|
10210008 |
550x350x220 |
580x380x240 |
42 |
5.3 |
|
10210009 |
550x350x310 |
580x380x330 |
60 |
5,8 |
|
10210026 |
1150x350x150 |
1180x380x170 |
60 |
8,4 |
|
10210010 |
550x350x380 |
580x380x400 |
73 |
6,1 |
|
10210014 |
750x350x310 |
780x380x330 |
81 |
7,1 |
|
10210013 |
670x370x430 |
700x400x450 |
107 |
7,3 |
|
10210003 |
550x550x380 |
580x580x400 |
115 |
7,5 |
|
10210027 |
1350x400x220 |
1380x430x240 |
119 |
10,7 |
|
10210025 |
2000x350x220 |
2030x380x240 |
154 |
14,1 |
|
10210015 |
750x550x380 |
780x580x400 |
157 |
9,1 |
|
10210017 |
950x450x380 |
980x480x400 |
162 |
9,8 |
|
10210024 |
1180x440x350 |
1210x470x370 |
182 |
11,1 |
|
10210005 |
1160x450x400 |
1190x480x420 |
209 |
11,5 |
|
10210002 |
730x540x550 |
760x570x570 |
217 |
10,0 |
|
10210001 |
750x550x580 |
780x580x600 |
239 |
10,5 |
|
10210018 |
1150x750x480 |
1180x780x500 |
414 |
15,4 |
|
10210004 |
1150x750x780 |
1180x780x800 |
673 |
18,4 |
