Products

Aluminium cases, boxes, baskets, trolleys

Office Box BB 345

TARGETED USE IN ARCHIVING APPLICATIONS

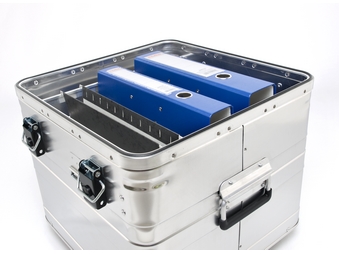

Office box BB 345 - Aluminium archiving box Office box BB 345 - Aluminium archiving box Office box BB 345 - Aluminium archiving boxOffice box BB 345 - Aluminium archiving boxOffice box BB 345 - Aluminium archiving box

Firm office boxes made from 0.8 mm aluminium sheet intended for file and folder storage. A unique product developed for targeted use in archiving applications. Special struts enable clear and simple storage and files and folders can be transported together. The removable lid enables free and quick access and elegant stationary use. Ideal for storing and transporting important documents in archiving, as well as during fieldwork, at fairs and elsewhere. Recyclable aluminium cases contribute to sustainable development in the commercial and public sectors.

This range offers an aluminum archiving box for archiving or for everyday file and folder storage in stationary or field use.

The BB 345 range comprises 2 models with capacities of 46 and 70 liters. If one of these does not fit your requirement, we can make to your size.

  • Specification
  • Features
  • Accessories
  • Sizes
  • Downloads

Specification:

  • Practical aluminium box. 0.8 mm aluminium sheet material on all sizes, for targeted use in archiving applications.
  • 2 standard available sizes, offering options for archiving or for everyday file and folder storage in stationary or field use. Special sizes can be made to order.
  • The box is suitable to store wide folders of 75mm, narrow folders of 50mm, as well as hang in folders.
  • 2 support profiles, one in each side, to backup file folders and hang in folders in the box.
  • Fastener hooks for car seat belts to fasten the box when used in cars.
  • Lid can be removed to provide free and quick access to your documents when in stationary use.
  • Corrosion resistant special hinges provide that the lid can be removed with sliding to the right. Hinge has a support tab to limit the lid opening angle and support the lid when open.
  • Aluminum profile safety spring handles with plastic molded grip
  • Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
  • All-round beads and corner beads for additional dimensional stability.
  • High-strength joints. Gap-free load-bearing, tox riveted overlap joint of the body sheet.
  • EPDM sealing gasket in the upper rim for ingression protection against dust and water.
  • Riveting. Lid profile and vertical joints are tox riveted, all other joints are finished with blind rivelarger
  • 95-100° opening angle of the lid.
  • Removable protection foil on the lid to protect the box against scratches.

Features: targeted for document handling in an economical way

Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

Aluminium archiving box application possibilities

Usage and application possibilities

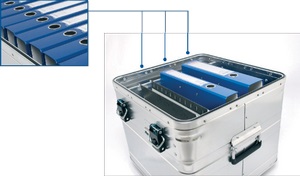

The box is suitable to store wide folders of 75mm, narrow folders of 50mm, as well as hang in folders. Especially suitable for storage and transportation of confidential documents.


Aluminium archiving box for up to 5 wide folders of 75 mm

400x400x290mm 'small'
Stores up to 5 wide folders of 75 mm

Aluminium archiving box for up to 7 narrow folders of 50 mm

400x400x290mm 'small'
Stores up to 7 narrow folders of 50 mm

Aluminium archiving box for up to 8 wide folders of 75 mm

600x400x290mm 'big'
Stores up to 8 wide folders of 75 mm

Aluminium archiving box for up to 7 narrow folders of 50 mm

600x400x290mm 'big'
Stores up to 10 narrow folders of 50 mm


Handles

Aluminium profile safety spring handles with return spring and plastic molded grip.

Riveting

Lid profile and vertical joints are tox riveted, all other joints are finished with blind rivets.

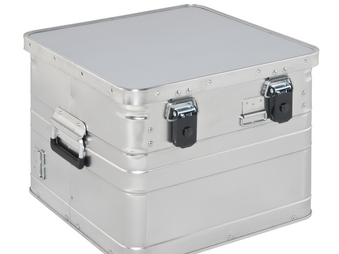

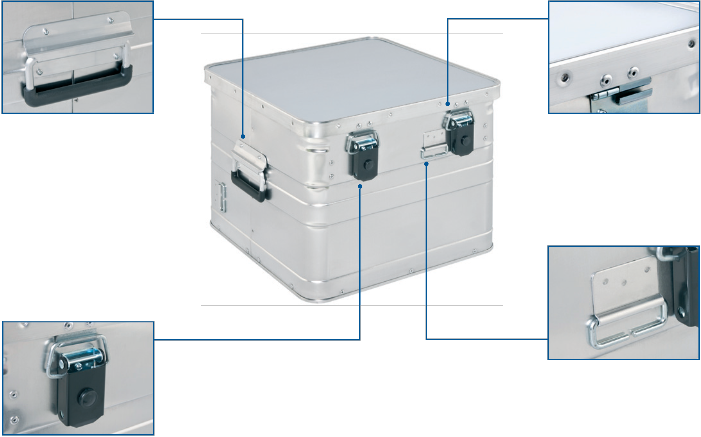

Aluminium archiving box - Office box BB 345 front view

Toggle lock made from aluminum / stainless steel

40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.

Fastener hooks

Fastener hooks for car seat belts to fasten the box when used in cars.

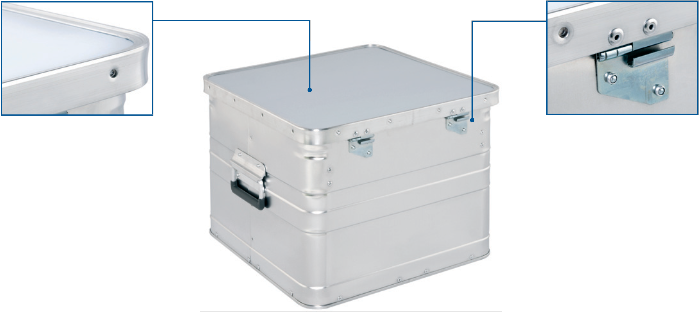

Protection foil

Removable protection foil on the lid to protect the box against scratches.

Hinges

Special hinges provide that the lid can be removed with sliding to the right. Hinge has a support tab to limit the lid opening angle and support the lid when open.

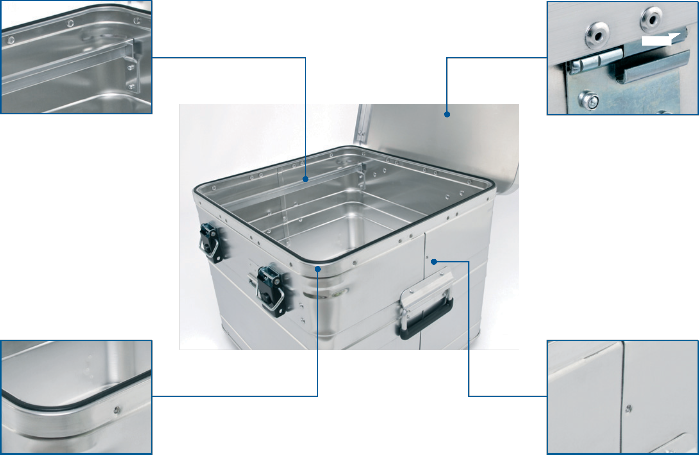

Aluminium archiving box - Office box BB 345 rear view


Support profiles

2 support profiles, one in each side, to backup file folders and hang in folders in the box.

Removable lid

Lid can be removed to provide free and quick access to your documents when in stationary use.

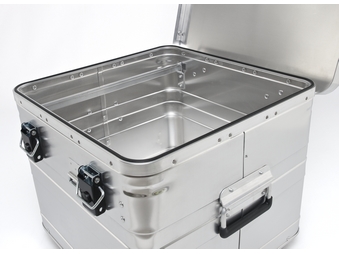

Aluminium archiving box - Office box BB 345 front view open

Sealing gasket

EPDM sealing gasket in the upper rim for ingression protection against dust and water.

High-strength joints

Gap-free load-bearing, tox riveted overlap joint of the body sheet.



Accessories

TO COMPLETE YOUR BOX INTO A PACKAGING SOLUTION
We offer not only empty boxes but also a range of useful accessories.

Aluminium case - Cylinder lock fitted in toggle lock

Cylinder locks - lock sets

The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box.

Document holder A/4 in aluminium box lid

Document holder A/4 / A/5

Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats.

Sizes Office Box BB 345

ADDITIONAL SIZES ARE POSSIBLE ON REQUEST

You can scroll the table to the left to see all columns.

Item No.

Int. dimensions  mm (LxWxH)

Ext. dimensions mm (LxWxH)

Volume (L)

Weight (KG)

10210121

400x400x290

440x440x320

46

3,7

10210122

 600x400x290

 640x440x320

70

4,6



» Download the Office Box BB 345 Product Leaflet
