Products

Aluminium cases, boxes, baskets, trolleys

Transport Box Trolley

All-rounder, sturdy transport box trolley with lid
Transport Box Trolley - Alubox Transport Box Trolley - Alubox Transport Box Trolley - Alubox

Universal aluminium transport box trolley with 4 swivel wheels and lid for a broad range of applications, for packaging, & organization or protection. The aluminium transport box trolleys perform endurably as they are designed and manufactured for applications under extreme conditions. With their rigid design you get a trustworthy and yet economical packaging.

The transport box trolley series is for universal industrial use, for everyone, requesting a tough, safe and yet economical alubox.

The Transport Box Trolley range comprises 1 model, with a capacity of 239 liters. If one of these does not fit your requirement, we can make to your size.
  • Specification
  • Features
  • Accessories
  • Sizes
  • Downloads

Specification:

  • High quality heavy duty aluminium alloy transport box trolley from 1.0 mm AlMg3 sheet material, strength and durability by design.
  • Aluminum profile safety spring handles with plastic molded grip.
  • Toggle locks made from aluminium/stainless steel. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle Ø 6 mm.
  • Additional bracing made of stable aluminium profiles. The bottom has been additionally reinforced with aluminium reinforcement struts at the wheels fixing.
  • All riveted joints are finished with solid rivets.
  • 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
  • 95-100° opening angle of the lid.
  • IP 54 standard design.
  • Stacking corners made of cast aluminium with injection molding.
  • All-round beads for additional dimensional stability.
  • Stainless steel piano hinges lengthwise of the box. Riveted in the body sheet and solid lid profile.
  • High-strength welded joints. Gap-free, load-bearing dot welded overlap joint of the body sheet.
  • Solid silicone sealing gasket 8x7mm in the upper rim with specially formed legs to avoid extraction. High temperature tolerance in the event of exposure to both low and high temperatures.
  • Material: Aluminium alloy EN AW 5754 H22/H32 (AlMg3)
  • Sheet thickness: 1 mm
  • Internal size (mm): 750x550x580
  • External size (mm): 787x587x610 (without wheels and handle on the left)
  • External size (mm): 835x587x728 (with wheels and handle on the left)
  • Packaged size (mm): 855x610x753 (in the corrugated cardboard box)
  • Volume (l): 239
  • Net weight (kg): 13,6
  • Gross weight (kg): 15,9 (packaged)
  • Load capacity of box: 150 kg (evenly distributed on the bottom)
  • Wheels: with 4 swivel wheels, no brake, wheel diam. 100mm, 35mm wide
  • Load capacity of wheels: 450 kg (4 wheels)
  • One aluminium tube handle on the left hand short side. 400mm wide
  • Packing: in corrugated cardboard boxes

Features: rugged design, universal application

Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

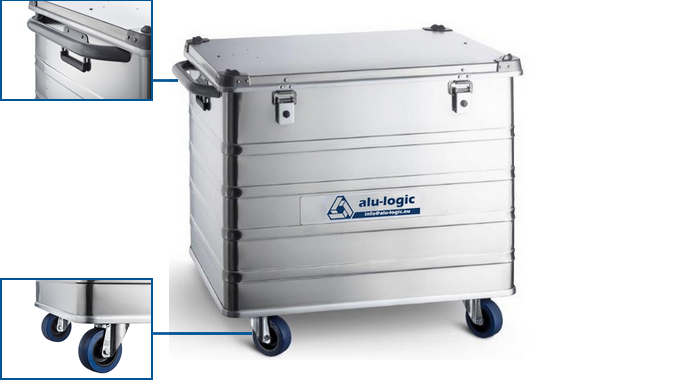

Handle tube

One aluminium tube handle on the left hand short side. 400mm wide.

Alubox - Transport Box Trolley

Swivel wheels

4 swivel wheels, no brake, wheel diam. 100mm, 35mm wide. Load capacity of wheels: 450 kg (4 wheels).

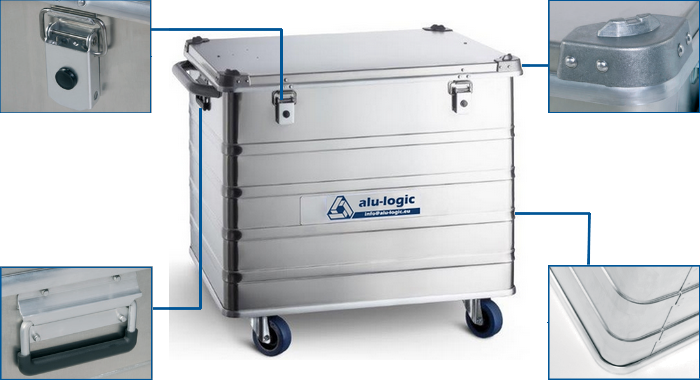

Toggle lock made from aluminum / stainless steel

40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.

Stacking corners

Made of cast aluminum with injection molding.

Alubox - Transport Box Trolley

Handles

Aluminium profile safety spring handles with return spring and plastic molded grip.

Beads

All-round beads and corner beads for additional dimensional stability depending on size.

Accessories

TO COMPLETE YOUR BOX INTO A PACKAGING SOLUTION
We offer not only empty boxes but also a range of useful accessories.

Aluminum box internal divider panels

Internal dividers

We offer adjustable aluminum divider panel sets for the boxes, consisting of aluminum partition walls and struts. They quickly and simply help adjusting the box's interior to whatever you are transporting or storing.

Foam inserts and foam linings to aluminium boxes

Foam inserts and linings

Foam inserts and foam linings made of PE, PU, EPE and ESD foams. Quick and perfect solution for individual units or valuable batches stored in the box.

Aluminium case - Cylinder lock fitted in toggle lock

Cylinder locks - lock sets

The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box.

Document holder A/4 in aluminium box lid

Document holder A/4 / A/5

Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats.


Optional extras

FOR YOUR SPECIFIC DEMAND
Extras are provided for fulfilling the requirements of planned operations.

Individual logo embossing and markings for aluminium boxes

Logo & marking

Individual logo embossing and markings upon customer request.

Sizes Transport Box Trolley

ADDITIONAL SIZES ARE POSSIBLE ON REQUEST

You can scroll the table to the left to see all columns.

Item No.

Int. dimensions mm (LxWxH)

Ext. dimensions mm (LxWxH)

Volume (L)

Weight (KG)

10210157

750x550x580

835x587x728

239

13,6
