Products

Aluminium cases, boxes, baskets, trolleys

Economy Box BA 340

SHIPPING AND STORAGE SOLUTION IN THE ECONOMICAL WAY
Economy Box BA 340 - Aluminium case Economy Box BA 340 - Aluminium case Economy Box BA 340 - Aluminium case

Lightweight boxes in remarkably firm construction, made from 0.8 mm aluminium sheet, intended for everyday transport and storage tasks, where the economical use matters. Recyclable aluminum cases contribute to sustainable development in the commercial and private sectors.

This range offers an aluminium box for the most economical uses, to be your aluminum storage box for your everyday storage and transport tasks.

The BA 340 range comprises 6 models with capacities ranging from 29 to 184 liters. If one of these does not fit your requirement, we can make to your size.


  • Specification
  • Features
  • Accessories
  • Sizes
  • Downloads

Specification:

  • Lightweight aluminium box in remarkably firm construction. 0.8 mm aluminium sheet material on all sizes.
  • 5 standard available sizes, offering the most economical aluminium box for everyday use, like transport and storage.
  • 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
  • Corrosion resistant hinges with hinge damage prevention.
  • Aluminum profile safety spring handles with plastic molded grip.
  • Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
  • All-round beads and corner beads for additional dimensional stability depending on size.
  • High-strength joints. Gap-free load-bearing, tox riveted overlap joint of the body sheet.
  • EPDM sealing gasket in the upper rim for ingression protection against dust and water.
  • Riveting. Lid profile and vertical joints are tox riveted, all other joints are finished with blind rivets.
  • 95-100° opening angle of the lid.
  • Removable protection foil on the lid to protect the box against scratches.

Features: most economical shipping and storage solution

Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

Handles

Aluminium profile safety spring handles with return spring and plastic molded grip.

Riveting

Lid profile and vertical joints are tox riveted, all other joints are finished with blind rivets.

Alubox - BA 340 Economy Box front view

Beads

All-round beads and corner beads for additional dimensional stability depending on size.

Toggle lock made from aluminium / stainless steel

40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.


Protection foil

Removable protection foil on the lid to protect the box against scratches.

Hinges

Corrosion resistant hinges with hinge damage prevention.

Alubox - BA 340 Economy Box rear view



Sealing gasket

EPDM sealing gasket in the upper rim for ingression protection against dust and water.

Lid straps

2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.

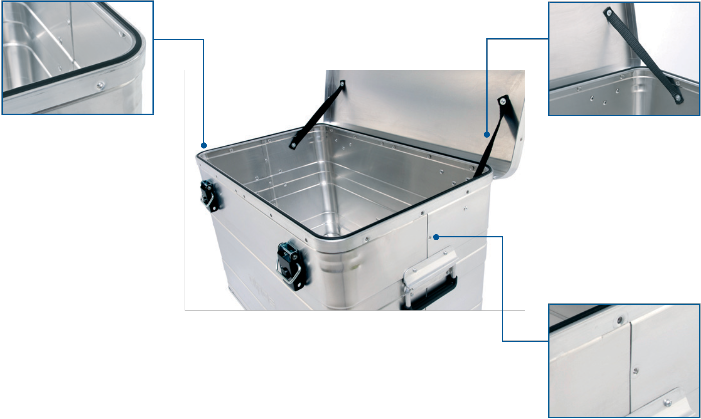

Alubox - BA 340 Economy Box front view open



High-strength joints

Gap-free load-bearing, tox riveted overlap joint of the body sheet.



Accessories

TO COMPLETE YOUR BOX INTO A PACKAGING SOLUTION
We offer not only empty boxes but also a range of useful accessories.

Aluminum box internal divider panels

Internal dividers

We offer adjustable aluminum divider panel sets for the boxes, consisting of aluminum partition walls and struts. They quickly and simply help adjusting the box's interior to whatever you are transporting or storing.

Foam inserts and foam linings to aluminium boxes

Foam inserts and linings

Foam inserts and foam linings made of PE, PU, EPE and ESD foams. Quick and perfect solution for individual units or valuable batches stored in the box.

Aluminium case - Cylinder lock fitted in toggle lock

Cylinder locks - lock sets

The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box.

Document holder A/4 in aluminium box lid

Document holder A/4 / A/5

Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats.

Sizes Economy Box BA 340

ADDITIONAL SIZES ARE POSSIBLE ON REQUEST

You can scroll the table to the left to see all columns.

Item No.

Int. dimensions  mm (LxWxH)

Ext. dimensions mm (LxWxH)

Volume (L)

Weight (KG)

10210029

400X300X245

 430x330x275

29

2,9

10210030

550x350x245

 580x380x275

47

3,7

10210031

565x360x350

 595x390x380

71

4,4

10210032

750x350x350

 780x380x380

92

5,1

10210033

870x460x350

 900x490x380

140

7,8

10210034

760x530x475

790x560x487

184

8,5



» Download the Economy Box BA 340 Product Leaflet
