Aluminium cases, boxes, baskets, trolleys

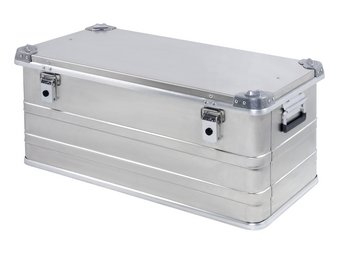

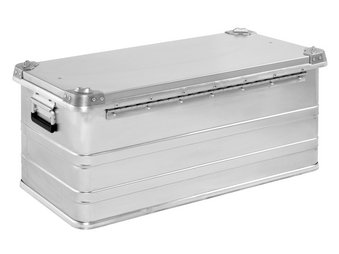

Offshore Box AL 640
UNCOMPROMISING PERFORMANCE IN INDUSTRIAL ENVIRONMENTS
Universal aluminium storage box for a broad range of applications, from sea transport to manufacturing, packaging, storage & inland transport, organization or protection. Whether inland or off shore, these boxes perform endurably as they are designed and manufactured based on the practical experiences of offshore applications under extreme conditions. With their rigid design you get a trustworthy and yet economical packaging. Recyclable aluminium cases contribute to sustainable development in the offshore industry.
This range offers an aluminium transport box for universal industrial use, for everyone, requesting a tough and yet economical alubox.
The AL 640 range comprises 33 models. Capacities range from 13 to 874 liters. If one of these does not fit your requirement, we can make to your size.Specification:
- High quality heavy duty aluminium alloy box. 1.0 mm AlMg3 body sheet material on all sizes, strength and durability by design.
- 33 standard available sizes, stackable within range, offering options for logistical packing, storage and transport. Special sizes can be made to order.
- Aluminum profile safety spring handles with plastic molded grip.
- Toggle locks made from aluminium/stainless steel. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle Ø 6 mm.
- Additional bracing made of stable aluminium profiles. Depending on the size, the bottom and the lid have been additionally reinforced with aluminium reinforcement struts.
- All riveted joints with sealed blind rivets.
- 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
- 95-100° opening angle of the lid.
- IP 54 standard design.
- Stacking corners made of cast aluminium with injection molding.
- All-round beads and corner beads for additional dimensional stability depending on size.
- Stainless steel piano hinges lengthwise of the box. Riveted in the body sheet and solid lid profile.
- High-strength welded joints. Gap-free, load-bearing dot welded overlap joint of the body sheet.
- Solid silicone sealing gasket 8x7mm in the upper rim with specially formed legs to avoid extraction. High temperature tolerance in the event of exposure to both low and high temperatures.
Features: rugged design balanced with economy
Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

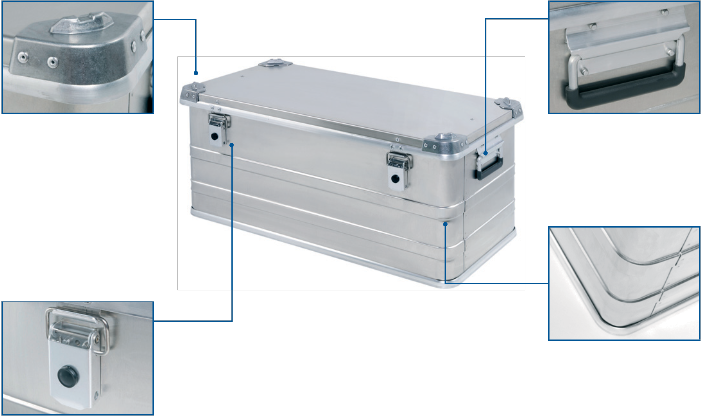

Stacking corners
Made of cast aluminum with injection molding.
Handles
Aluminium profile safety spring handles with return spring and plastic molded grip.
Toggle lock made from aluminum / stainless steel
40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
Beads
All-round beads and corner beads for additional dimensional stability depending on size.
Rivets
All riveted joints are finished with sealed blind rivets.

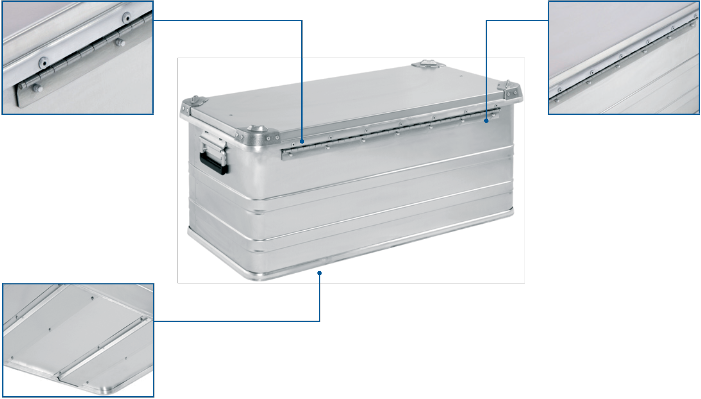

Stainless steel piano hinges lengthwise
Riveted in the body sheet and solid lid profile.
Aluminium profile reinforcement struts
Additional bracing made of stable aluminium profiles. Depending on the size, the bottom and the lid have been additionally reinforced with aluminium reinforcement struts.

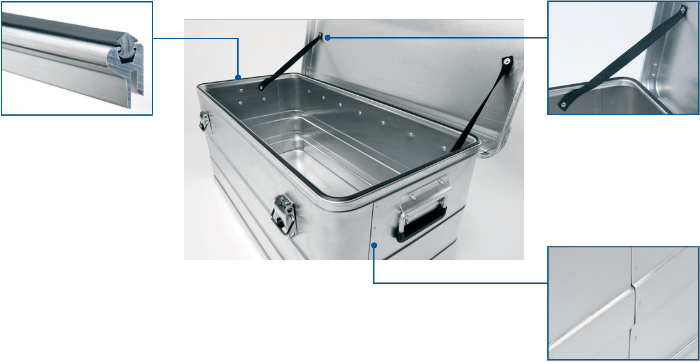

Silicone sealing gasket
Solid silicone sealing gasket 8x7mm in the upper rim with specially formed legs to avoid extraction. High temperature tolerance in the event of exposure to both low and high temperatures.

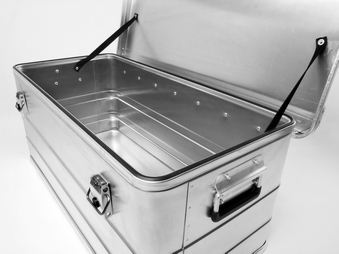

Lid straps
2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
High-strength welded joints
Gap-free load-bearing dot welded overlap joint of the body sheet.
AccessoriesTO COMPLETE YOUR BOX INTO A PACKAGING SOLUTIONWe offer not only empty boxes but also a range of useful accessories. |
|||
|
We offer adjustable aluminum divider panel sets for the boxes, consisting of aluminum partition walls and struts. They quickly and simply help adjusting the box's interior to whatever you are transporting or storing. |
Foam inserts and foam linings made of PE, PU, EPE and ESD foams. Quick and perfect solution for individual units or valuable batches stored in the box. |
The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box. |
Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats. |
Optional extrasFOR YOUR SPECIFIC DEMANDExtras are provided for fulfilling the requirements of planned operations. |
|||
|
It might be necessary that the box is painted in a color complying with the application purpose. Powder coating is available in any RAL color or in special colors like RAL 6031 F9 NATO green. |
Individual logo embossing and markings upon customer request. |
The aluminium boxes can be equipped with various additional features, like wheels, legs or the two combined, as well as label holders, pressure relief valves, etc. |
|
Sizes Offshore Box AL 640
ADDITIONAL SIZES ARE POSSIBLE ON REQUEST
You can scroll the table to the left to see all columns.
|
Item No. |
Int. dimensions mm (LxWxH) |
Ext. dimensions mm (LxWxH) |
Volume (L) |
Weight (KG) |
|---|---|---|---|---|
|
10210075 |
500x170x150 |
530x200x170 |
13 |
3,6 |
|
10210101 |
360x260x165 |
390x290x185 |
15 |
3,5 |
|
10210076 |
785x170x150 |
815x200x170 |
20 |
5,0 |
|
10210083 |
350x250x310 |
380x280x330 |
27 |
3,8 |
|
10210079 |
550x350x150 |
580x380x170 |
29 |
4,9 |
|
10210080 |
370x350x310 |
400x380x330 |
40 |
4,5 |
|
10210085 |
550x350x220 |
580x380x240 |
42 |
5,2 |
|
10210105 |
390x350x310 |
420x380x330 |
42 |
4,6 |
|
10210106 |
370x370x380 |
400x400x400 |
52 |
4,9 |
|
10210084 |
550x350x310 |
580x380x330 |
60 |
5,7 |
|
10210077 |
1270x220x230 |
1300x250x250 |
64 |
8,4 |
|
10210093 |
550x550x220 |
580x580x240 |
67 |
6,5 |
|
10210086 |
550x350x380 |
580x380x400 |
73 |
6,0 |
|
10210087 |
750x350x310 |
780x380x330 |
81 |
7,0 |
|
10210082 |
1950x300x155 |
1980x330x175 |
91 |
12,2 |
|
10210102 |
1000x350x310 |
1030x380x330 |
109 |
8,6 |
|
10210096 |
1470x270x280 |
1500x300x300 |
111 |
10,4 |
|
10210094 |
550x550x380 |
580x580x400 |
115 |
7,4 |
|
10210092 |
600x400x485 |
630x430x505 |
116 |
7,3 |
|
10210090 |
850x450x350 |
880x480x370 |
134 |
8,7 |
|
10210088 |
750x550x380 |
780x580x400 |
157 |
9,0 |
|
10210104 |
1700x300x310 |
1730x330x330 |
158 |
12,5 |
|
10210095 |
550x550x580 |
580x580x600 |
175 |
8,6 |
|
10210107 |
1950x300x300 |
1980x330x320 |
176 |
13,9 |
|
10210103 |
1000x350x550 |
1030x380x570 |
193 |
10,3 |
|
10210081 |
1150x450x380 |
1180x480x410 |
197 |
11,2 |
|
10210089 |
750x550x580 |
780x580x600 |
239 |
10,4 |
|
10210097 |
1150x750x310 |
1180x780x330 |
267 |
13,5 |
|
10210078 |
750x550x780 |
780x580x800 |
322 |
11,8 |
|
10210099 |
1550x550x480 |
1580x580x500 |
409 |
16,5 |
|
10210091 |
1150x750x480 |
1180x780x500 |
414 |
15,2 |
|
10210098 |
1150x750x680 |
1180x780x700 |
587 |
17,3 |
