Modular Shelf Container AM 645
DEVELOPED PARTICULARLY FOR THE HEALTH CARE INDUSTRY
Modular shelf containers are medical boxes. Aluminium transport and storage containers for first-aid equipment, tools, spares etc. used in military applications, in the emergency services and by the ambulance and rescue services. Designed to accommodate Scan Modul System™ modules with ISO standard measurements 600x400 mm (23 5/8" x 15 3/4") and variable heights. The fundamental principle in our storage solutions is a module that provides 400mm width and 600mm depth direction for insertion, in two compartments, allowing variable height modules and the modules to move freely throughout the entire system.
Modular shelf container for protected and safe stacking and conveying particularly in the health care industry.
The AM 645 range comprises 1 model with a capacity of 300 liters.Specification:
- High quality heavy duty aluminium alloy shelf container. 1.0 mm AlMg3 sheet material, strength and durability by design.
- Removable lid, connected by the means of 4 toggle locks.
- Peripheral seal to front. Solid silicone sealing gasket 8x7mm in the edge profile frame for ingression protection against dust and water with specially formed legs to avoid extraction. High temperature tolerance in the event of exposure to both low and high temperatures.
- Toggle locks made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm. Optional cylinder locks or lock sets to close the box for the safety of sensible contents, like drugs, etc.
- 2 heavy duty stainless steel/aluminium spring drop handles on each side with return spring and plastic molded grip.
- 2 all-round beads for additional dimensional stability.
- Edge, lid and base profile frames made of solid profile sections. Profille-section joints fully welded.
- High-strength welded joints. Gap-free, load-bearing dot welded overlap joint of the body sheet.
- Stacking corners on the lid made of cast aluminium with injection molding are intended for safe and economical storage and transport in a limited space when the containers are empty.
- Also stackable when fully loaded, with help of the tubular stacking nodes, providing a cabinet like use.
- Interior with 2 compartments with 2 pairs of side support panels with 13 inserts of each, for a maximum of 4 modular inserts pro compartment, ie. 8 modular inserts pro container. Plastic parts are white ABS molds.
- Side support panels with built-in stop-function. Standard version including the 2 pairs of side support panels with 13 inserts of each and excluding modular inserts.
- Modular inserts are assembled and loaded in the containers upon the specification of client.
Features: for the specific requirements of mobile medical applications
Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.
Tubular stacking nodes
The containers are also stackable when fully loaded, with help of the tubular stacking nodes, providing a cabinet like use both stationary and in transport.
Beads
2 all-round beads for additional dimensional stability.
Removable lid / toggle locks
Removable lid, connected by the means of 4 toggle locks. Toggle locks made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm. Optional cylinder locks or lock sets to close the box for the safety of sensible contents, like drugs, etc.
Seal
Peripheral seal to front. Solid silicone sealing gasket 8x7mm in the edge profile frame for ingression protection against dust and water with specially formed legs to avoid extraction. High temperature tolerance in the event of exposure to both low and high temperatures.
Rivets
All riveted joints are finished with sealed blind rivets.
Handles
2 heavy duty stainless steel/aluminium spring drop handles on each side with return spring and plastic molded grip.
Compartment divider
Compartment divider in the middle made of 2mm aluminium sheet.
High-strength welded joints
Gap-free load-bearing dot welded overlap joint of the body sheet.
Interior

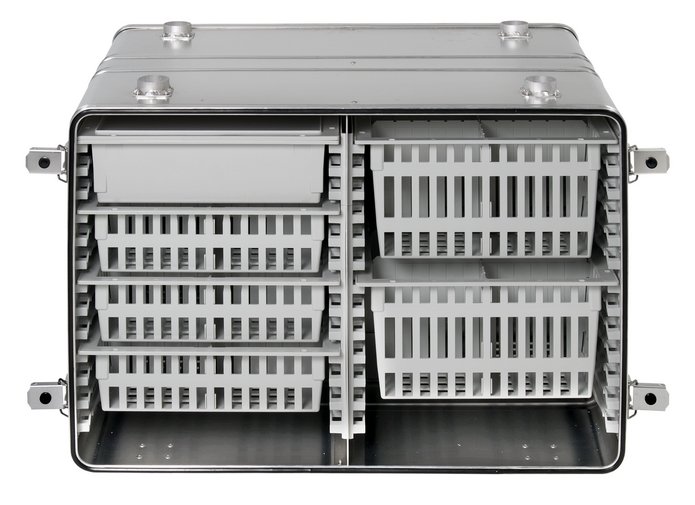

Interior with 2 compartments with 2 pairs of side support panels with 13 inserts of each, for a maximum of 4 modular inserts pro compartment, ie. 8 modular inserts pro container. Plastic parts are white ABS molds.

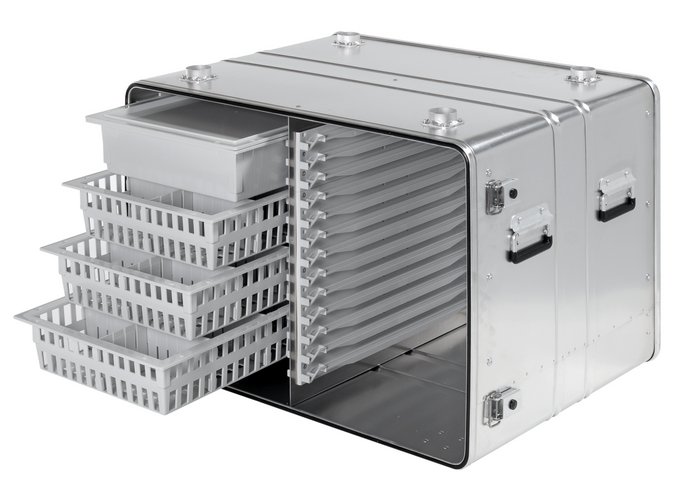

Side support panels with built-in stop-function
Standard version including the 2 pairs of side support panels with 13 inserts of each and excluding modular inserts.

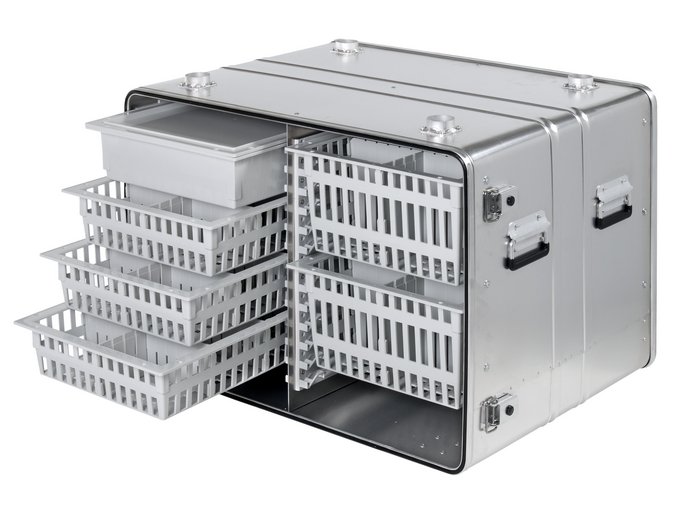

Modular inserts
Modular inserts are assembled and loaded in the containers upon the specification of client.
AccessoriesTO COMPLETE YOUR BOX INTO A PACKAGING SOLUTIONWe offer not only empty boxes but also a range of useful accessories. |
|||
|
The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box. |
Padlocks - 3-digit code - titanium, to secure valuables/goods. Handy operation without key, low weight, high value clousure. |
||
Sizes Modular Shelf Container AM 645
ADDITIONAL SIZES ARE POSSIBLE ON REQUEST
You can scroll the table to the left to see all columns.
|
Item No. |
Int. dimensions mm (LxWxH) |
Ext. dimensions mm (LxWxH) |
Volume (L) |
Weight (KG) |
|---|---|---|---|---|
|
10210022 |
840x620x580 |
870x650x610 |
300 |
13,5/19,5/32,5 |
