Products

Aluminium cases, boxes, baskets, trolleys

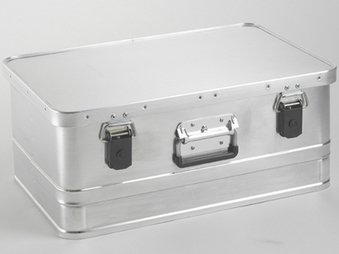

Budget Box AA 240

FOR THE PRIVATE SECTOR
Budget Box AA 240 - Aluminum case Budget Box AA 240 - Aluminum case

Lightweight boxes in a firm construction, made from 0.8 mm aluminium sheet, intended for the home user, for storage, removals, travel and a lot more. Sets can be pieced together from 4 different sizes (59L, 86 L, 120 L and 159 L) providing the boxes can be stored inside one another saving valuable storage space. Recyclable alu boxes as storage boxes contribute to sustainable development in the private sector.

This range offers an aluminum box for the home user, for everyday storage, transport and travel tasks as an ultimate aluminum storage case.

The AA 240 range comprises 2 individual models with capacities 39 and 79 liters, as well as 4 cases as box in box set with capacities ranging from 59 to 159 liters.


  • Specification
  • Features
  • Accessories
  • Sizes
  • Downloads

Specification:

  • Lightweight aluminium box in remarkably firm construction. 0.8 mm aluminium sheet material on all sizes.
  • 2 individual models with capacities 39 and 79 liters, as well as 4 cases as box in box sets with capacities ranging from 59 to 159 liters for everyday use, like storage, transport and travel.
  • 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.
  • Corrosion resistant hinges with hinge damage prevention.
  • Aluminum profile safety spring handles with plastic molded grip.
  • Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
  • All-round beads for additional dimensional stability.
  • High-strength joints. Gap-free load-bearing, dot welded overlap joint of the body sheet.
  • EPDM sealing gasket in the upper rim for ingression protection against dust and water.
  • Riveting. Lid profile is tox riveted, all other joints are finished with blind rivets.
  • 95-100° opening angle of the lid.
  • Removable protection foil on the lid to protect the box against scratches.

Features: high volume in a small space

Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

Handles

Aluminium profile safety spring handles with return spring and plastic molded grip.

Riveting

Lid profile is tox riveted, all other joints are finished with blind rivets.

Aluminum case - AA 240 Budget Box front view

Beads

All-round beads for additional dimensional stability.

Toggle lock made from aluminium / stainless steel

40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.


Protection foil

Removable protection foil on the lid to protect the box against scratches.

Hinges

Corrosion resistant hinges with hinge damage prevention.

Aluminum case - AA 240 Budget Box rear view



Sealing gasket

EPDM sealing gasket in the upper rim for ingression protection against dust and water.

Lid straps

2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.

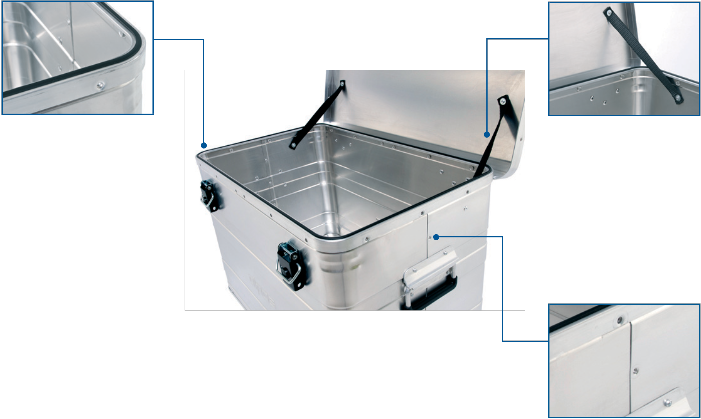

Aluminum case - AA 240 Budget Box front view open

Sealing gasket

EPDM sealing gasket in the upper rim for ingression protection against dust and water.

High-strength joints

Gap-free load-bearing, dot welded overlap joint of the body sheet.



Accessories

TO COMPLETE YOUR BOX INTO A PACKAGING SOLUTION
We offer not only empty boxes but also a range of useful accessories.

Aluminium case - Cylinder lock fitted in toggle lock

Cylinder locks - lock sets

The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box.



Sizes Budget Box AA 240

You can scroll the table to the left to see all columns.

BOX TYPE

Item number

Int. dimensions mm (LxWxH)

Ext. dimensions mm (LxWxH)

Volume (L)

Weight (KG)

39L single box 10210110 535x335x220 566x370x237 39 2,7
79L single box 10210111 750x353x300 785x388x317 79 4,4

159L SET of 4 boxes 10210133 N/A 785x585x402 424 16,5
159L set box 10210115 750x550x385 785x585x402 159 5,1
120L set box 10210114 680x482x367 711x517x384 120 4,6
86L set box 10210113 616x424x328 653x459x345 86 3,7
59L set box 10210112 547x360x300 580x395x317 59 3,1
