Products

Aluminium cases, boxes, baskets, trolleys

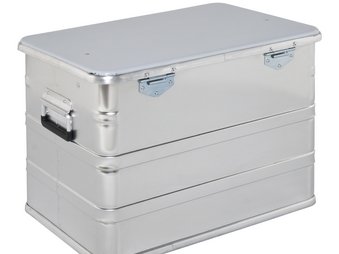

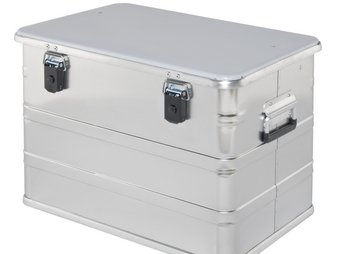

Transport Box CL 440

SAFE TRANSPORT PACKAGING
Transport Box CL 440 - Alu case Transport Box CL 440 - Alu case Transport Box CL 440 - Alu case

Light, yet rigid transport and storage boxes, superior in safety and economical in use, everywhere if no stackability is necessary. Use for mobile applications, when safe packing and storage is crucial while transportation of your precious tools or equipment. Recyclable aluminum cases contribute to sustainable development in the industrial and commercial sectors.

This range offers universal aluminum storage boxes as transport box for a wide variety of applications.

The CL 440 range comprises 5 individual models with capacities ranging from 29 to 140 liters, as well as 2 cases as box in box set with capacities 59 and 92 liters. If one of these does not fit your requirement, we can make to your size.


  • Specification
  • Features
  • Accessories
  • Sizes
  • Downloads

Specification:

  • Quality, endurable aluminium box. 1.0 mm aluminium sheet material on all sizes, light and rigid by design.
  • 5 standard available sizes, offering options for storage and transport. Special sizes can be made to order.
  • Aluminum profile safety spring handles with plastic molded grip.
  • Flat lid spares storage space and provides easy loading and unloading even space is limited.
  • Toggle lock made from aluminium/stainless steel - 40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.
  • Corrosion resistant hinges with hinge damage prevention.
  • All-round beads and corner beads for additional dimensional stability depending on size.
  • High-strength welded joints. Gap-free load-bearing dot welded overlap joint of the body sheet.
  • EPDM sealing gasket in the upper rim for ingression protection against dust and water.
  • All riveted joints with sealed blind rivets.
  • 2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-headrivets to prevent ripping out.
  • 95-100° opening angle of the lid.
  • Removable protection foil on the lid to protect the box against scratches.
  • IP 54 standard design.

Features: lightweight and economical in use

Many offer products. We deliver solutions. Solutions with all details designed for fulfilling. Nothing less and nothing more.

Handles

Aluminium profile safety spring handles with return spring and plastic molded grip.

Flat lid

Flat lid spares storage space and provides easy loading and unloading even space is limited.

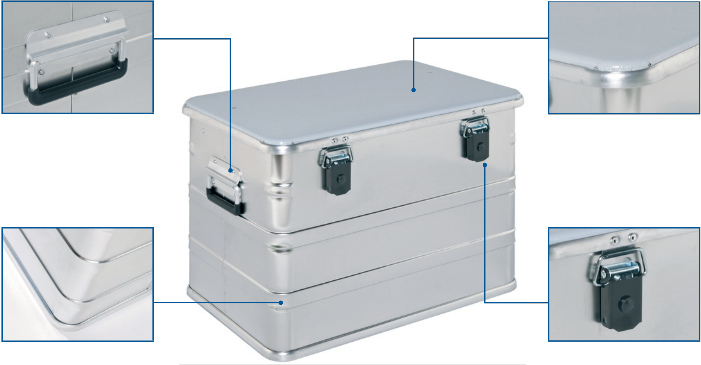

Alubox - CL 440 Transport box front view

Beads

All-round beads and corner beads for additional dimensional stability depending on size.

Toggle lock made from aluminium / stainless steel

40mm wide. Corrosion resistant, prepared for cylinder lock, lead seal and padlock, up to shackle thickness 6 mm.


Protection foil

Removable protection foil on the lid to protect the box against scratches.

Hinges

Corrosion resistant hinges with hinge damage prevention.

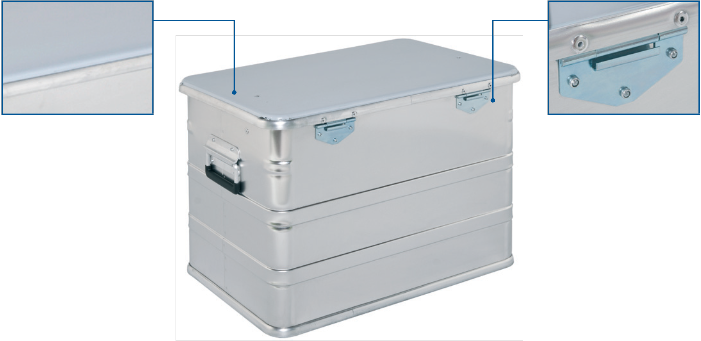

Alubox - CL 440 Transport box rear view



Rivets

All riveted joints are finished with sealed blind rivets.

Lid straps

2 lid straps, 20mm wide, ends sealed to avoid fraying. Fastened with oversized-head rivets to prevent ripping out.

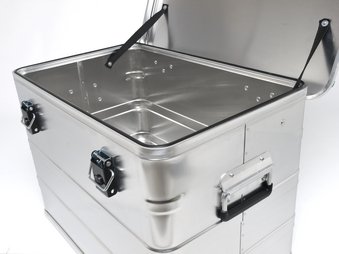

Alubox - CL 440 Transport box open front view

Sealing gasket

EPDM sealing gasket in the upper rim for ingression protection against dust and water.

High-strength welded joints

Gap-free load-bearing dot welded overlap joint of the body sheet.



Accessories

TO COMPLETE YOUR BOX INTO A PACKAGING SOLUTION
We offer not only empty boxes but also a range of useful accessories.

Aluminum box internal divider panels

Internal dividers

We offer adjustable aluminum divider panel sets for the boxes, consisting of aluminum partition walls and struts. They quickly and simply help adjusting the box's interior to whatever you are transporting or storing.

Foam inserts and foam linings to aluminium boxes

Foam inserts and linings

Foam inserts and foam linings made of PE, PU, EPE and ESD foams. Quick and perfect solution for individual units or valuable batches stored in the box.

Aluminium case - Cylinder lock fitted in toggle lock

Cylinder locks - lock sets

The design of the toggle locks enables fitting of locks that assure safety of sensible contents. Lock sets are available the complete ordered series keyed alike or keyed alike only in the set for one box.

Document holder A/4 in aluminium box lid

Document holder A/4 / A/5

Document holders made of aluminum sheet in the inside of the lid for storing accompanying documentation of the content like packing lists, etc. They are available in A/4 and A/5 formats.

Sizes Transport Box CL 440

ADDITIONAL SIZES ARE POSSIBLE ON REQUEST

You can scroll the table to the left to see all columns.

BOX TYPE

Item No.

Int. dimensions mm (LxWxH)

Ext. dimensions mm (LxWxH)

Volume (L)

Weight (KG)

29L single box

10210116

  400x300x245

  432x335x275

29

3,1

47L single box

10210117

  550x350x245

  582x385x262

47

4,4

73L single box

10210118

  550x350x380

  582x385x397

73

5,2

92L single box

10210119

  750x350x350

  782x385x367

92

6,1

140L single box

10210120

  870x460x350

  902x495x367

140

7,7


92L SET of 2 boxes 10210168 N/A 782x385x367 151 10,5
92L set box 10210119 750x350x350 782x385x367 92 6,1
59L set box 10210169 658x280x318 690x315x335 59 4,4



» Download the Transport Box CL 440 Product Leaflet
